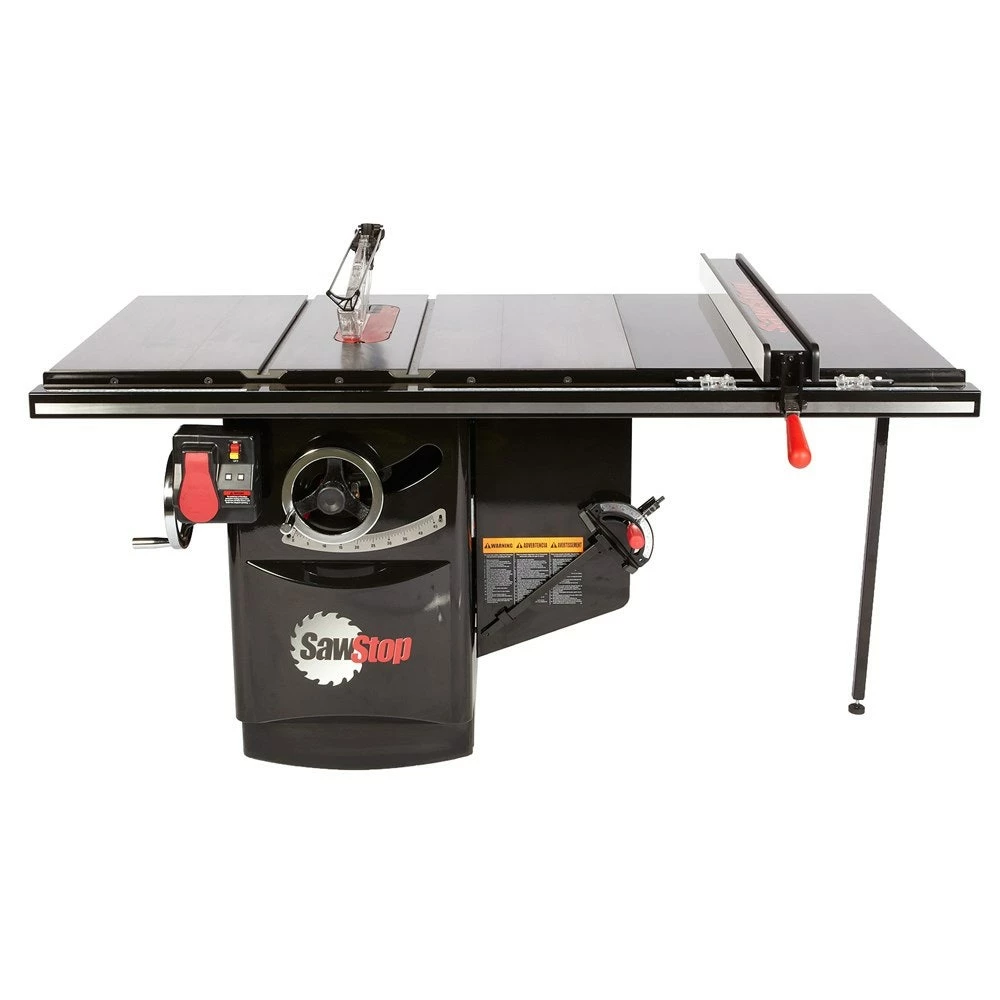

SAWSTOP 3 Phase Industrial Saw With 36inch Industrial Fence SST-ICS36TGLIDE3

The Industrial Cabinet Saw is engineered for heavy duty cycle environments. It comprises a thicker cast iron table for added stability and precision as well as thicker gauge steel in the cabinet, rails, tube and fence, compared to the Contractor and Professional models. It also has larger hand wheels for easy adjustment and two large access doors for quick access and maintenance are also some additional features. This model comes with a 36 Inch rail.

SawStop is known for the brake mechanism and preventing life changing injuries. However this is not where the research and development has stopped, all models have been designed for woodworkers by woodworkers. This means an engineer has not under engineered something to reduce weight or cost.

You will see the quality when you assemble your new saw, from the quality of the build, to the way the nuts and bolts are packaged. The manual is comprehensive, giving the end user the confidence in their new purchase.

Assembling the saw on a mobile base means it can be moved into position easily, and then moved out of the way in the future.

It is recommended that a spare blade and brake are bought at the time of purchase.

• Thicker, deeper cast-iron table and wings
• Industrial mobile base option
• Cabinet base, industrial weight cabinet-mounted trunnion, interior motor
• Superior design and construction
• Safest tablesaw in the world

Specifications:

• Motor: 3.7kW (5.0HP)
• Induction: No plug
• Switch Type: Special Type
• Blade Diameter: 10 Inch
• Arbor Diameter: 5/8 Inch
• Blade Guard Clear: Tilting – Rise & Fall
• Blade Tilt: Left
• Dado Capable: 20mm Maximum
• Drive Type: Ribbed V Belt (AntiStatic)
• Dust Port: 4 Inches
• Maximum Rip Capacity: 914mm
• Mitre Gauge Included: Yes
• Riving Knife Style: Quick Release
• Speed: 4200 RPM
• Stand Included Or Integral: Enclosed Cabinet
• Table Size: 1720mm x 686mm
• Workshop Footprint: (WxDxH) 1755 x 1015 x 1050mm
• Anti Kickback Pawls: Yes
• Fence Style: T Glide Steel

Includes:

• 1 x SST-ICS53415-3PH Saw Stop Industrial Cabinet Saw 3 Phase Saw Body
• 1 x SST-TGI2-FA SawStop ICS Fence Assembly ICS T-GLIDE1
• 1 x SST-TGI2-R36A SawStop ICS36” Rail Assembly T-Glide
• 1 x SST-TGI2-T36A 36” Extension Table Assembly suits ICS T-GLIDE1
• 2 X Cast Iron Extension Wings
• 1 X Miter Gauge
• 1 X Dust Collection Blade Guard
• 1 X Riving Knife
• 2 X Blade Wrenches
• 1 X Push Stick
• 1 X 10” Blade
• 1 X Standard Brake Cartridge
• 1 X Owner’s Manual
• 2 X Hardware Packs
• 1 X 3mm Hex Key
• 1 X 5mm Hex Key
• 1 X 8mm Hex Key
• 1 X Blade Spacing Adjustment Gauge
