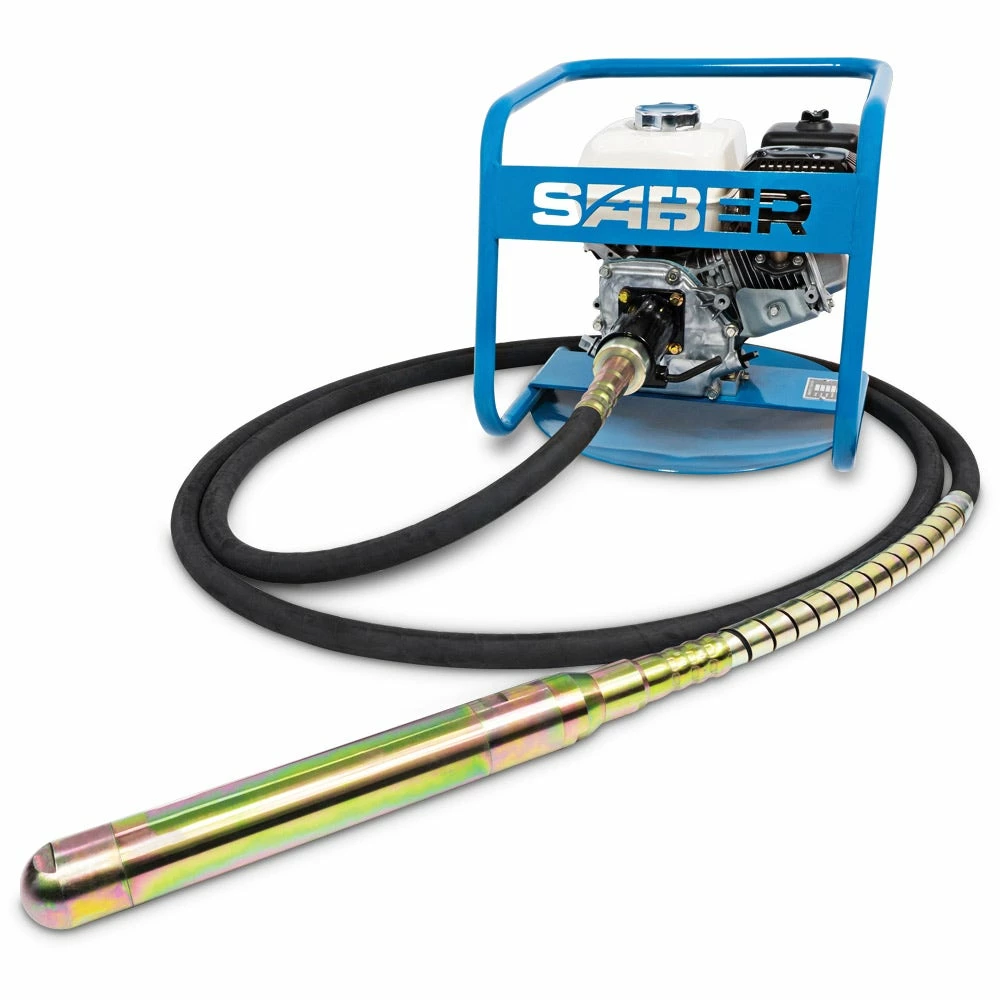

SABER 5.5HP Honda Drive Unit W/ 6m Flex Shaft Vibrator SABDRUVBKIT

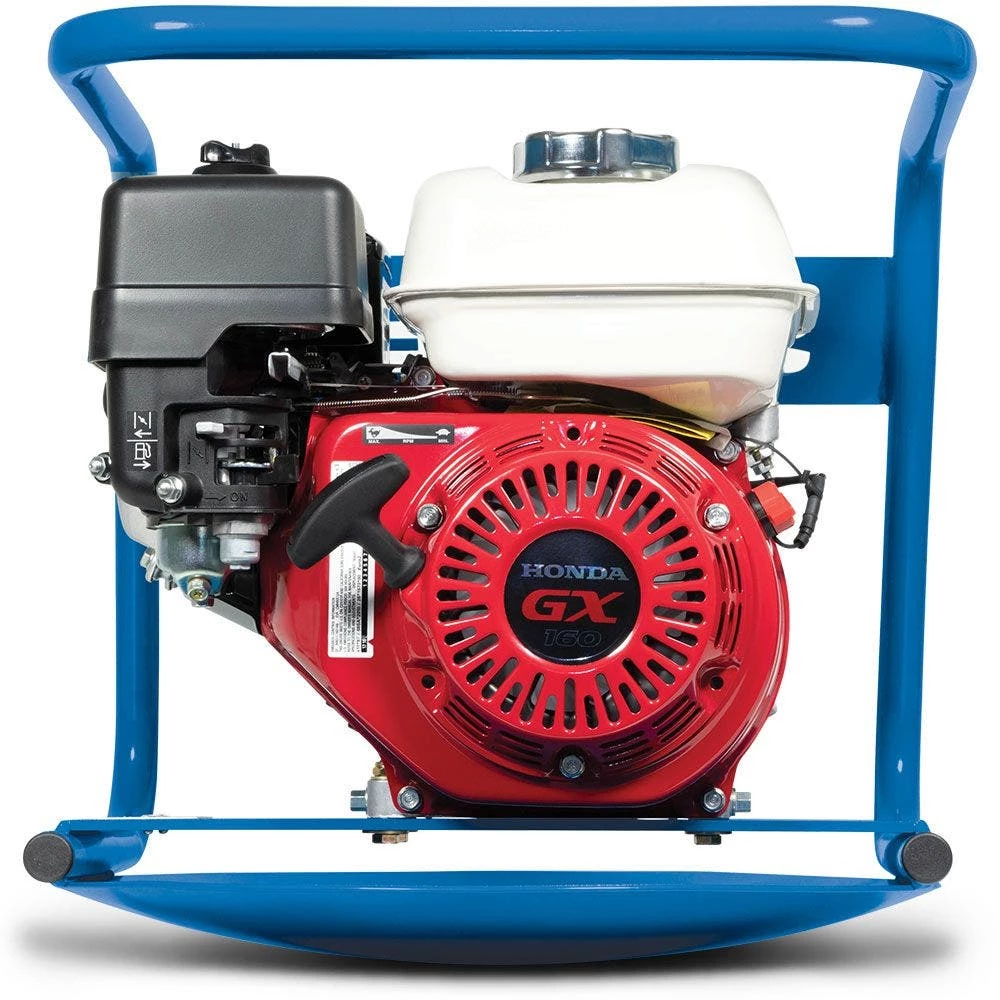

• Genuine HONDA GX160 5.5hp engine

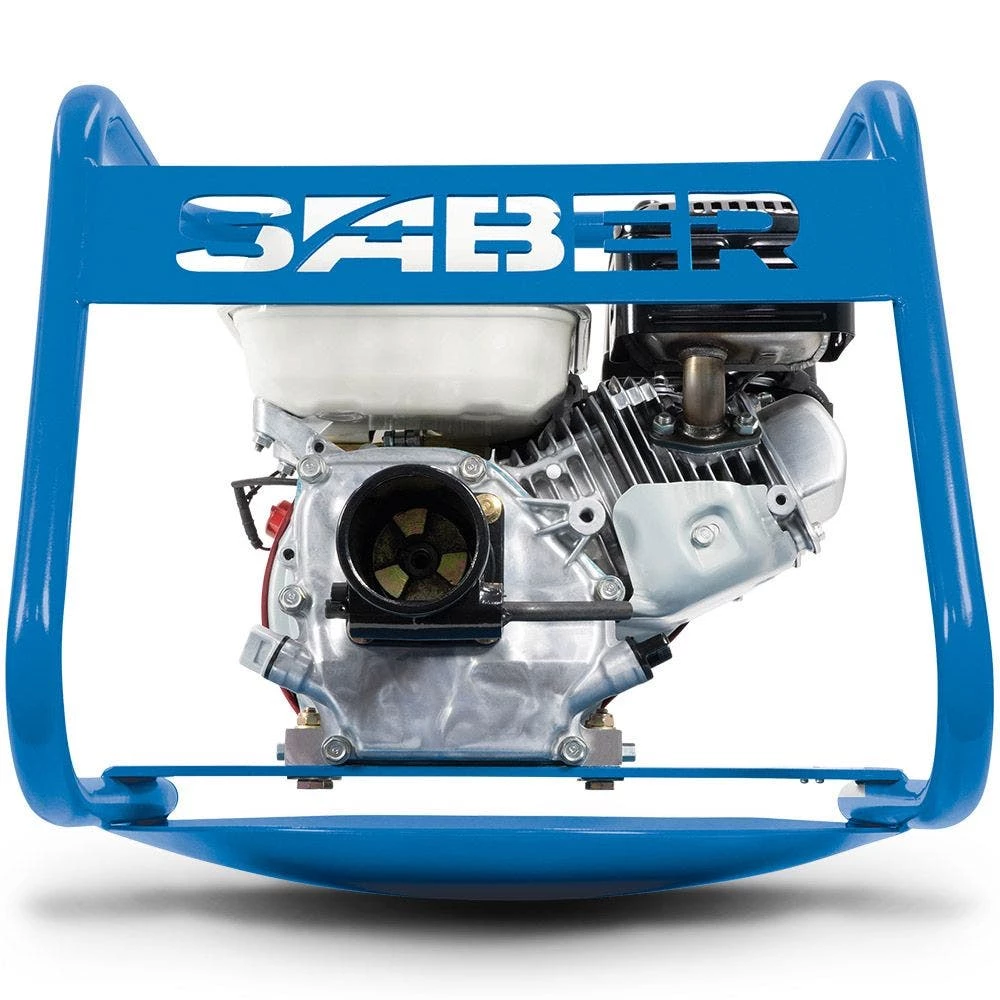

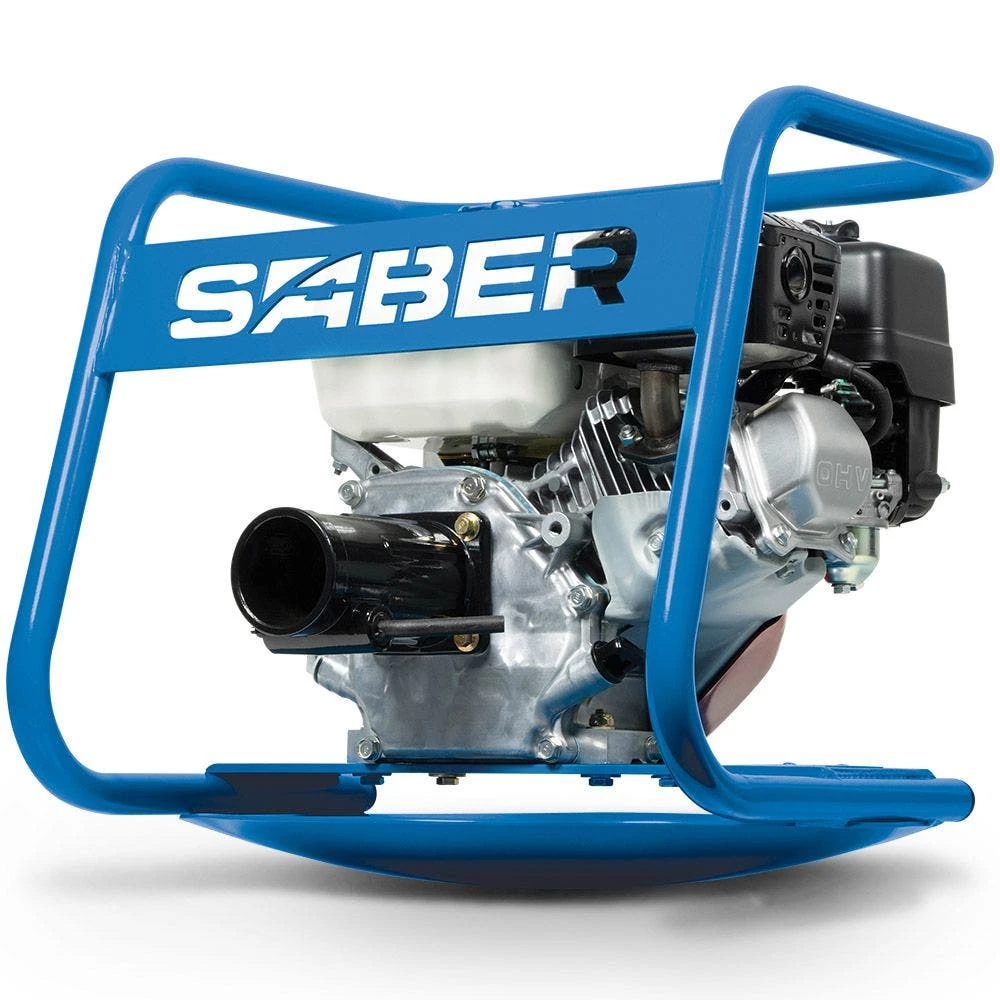

• C-type frame
• Suitable for use with SABER flexible shaft vibrator and pump

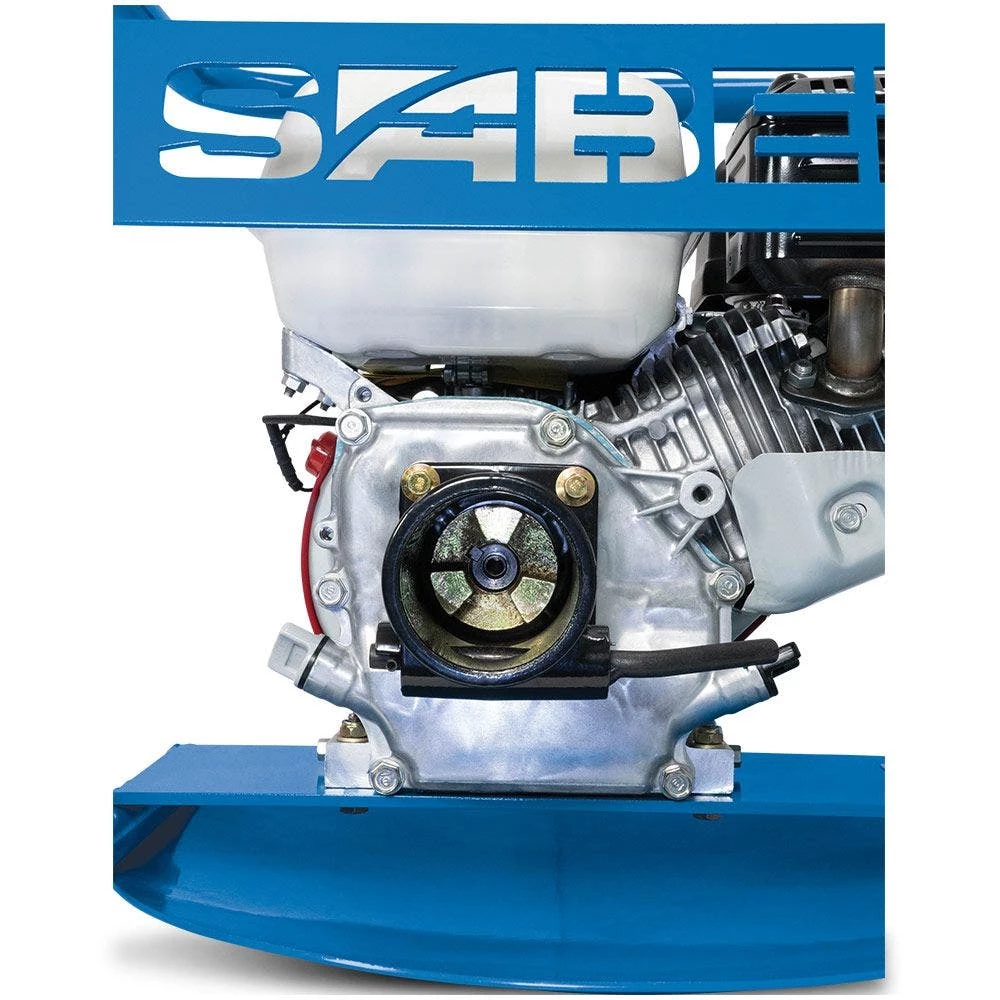

• 3-Tooth drive dog connector with quick connect bell housing
• Maximum length 6m flex shaft
• Maximum 28-70mm diameter poker
• Net weight: 26kg
• Compatible with most 3-Tooth drive dog connectors

Specifications:

• Engine: Honda GX160
• Speed: 3600rpm
• Oil Capacity: 0.6L
• Fuel Consumption: 1.4 L/h – 3600 rpm

Includes:

• 1 x Drive Unit
• 1 x Instruction Manual

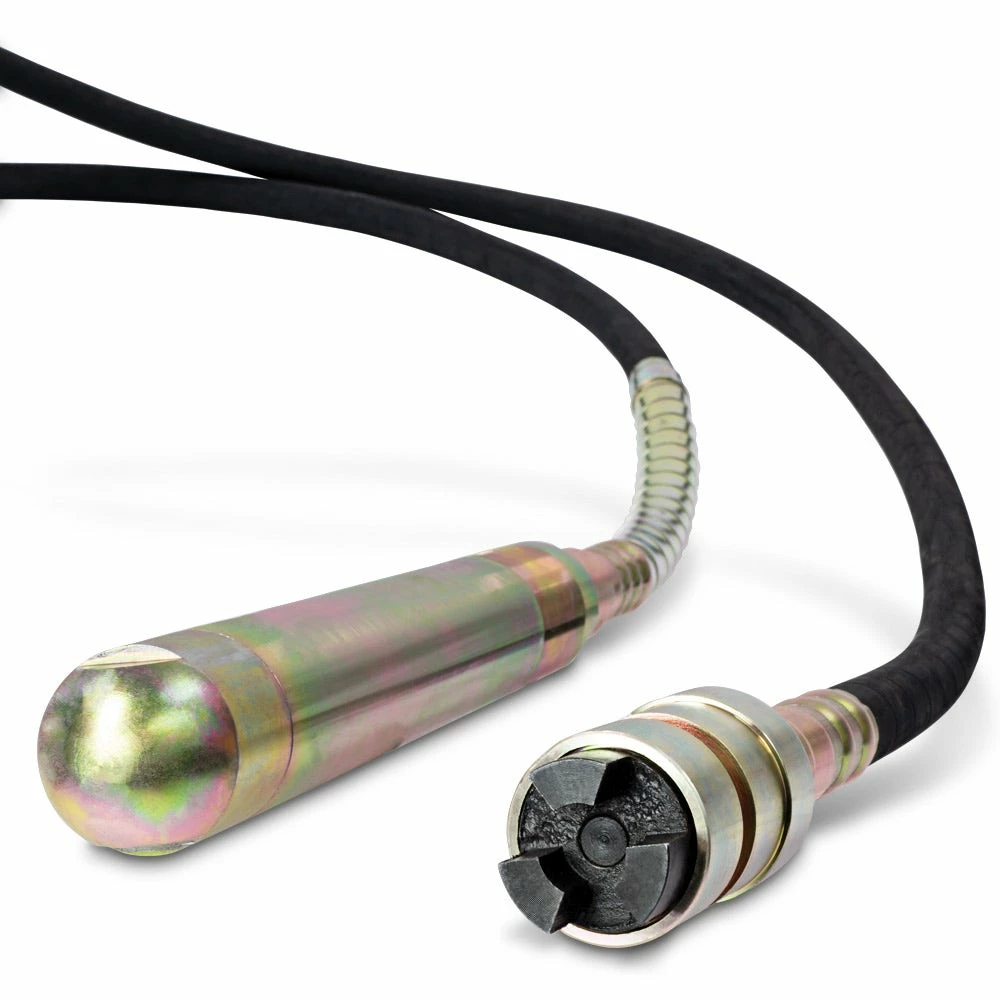

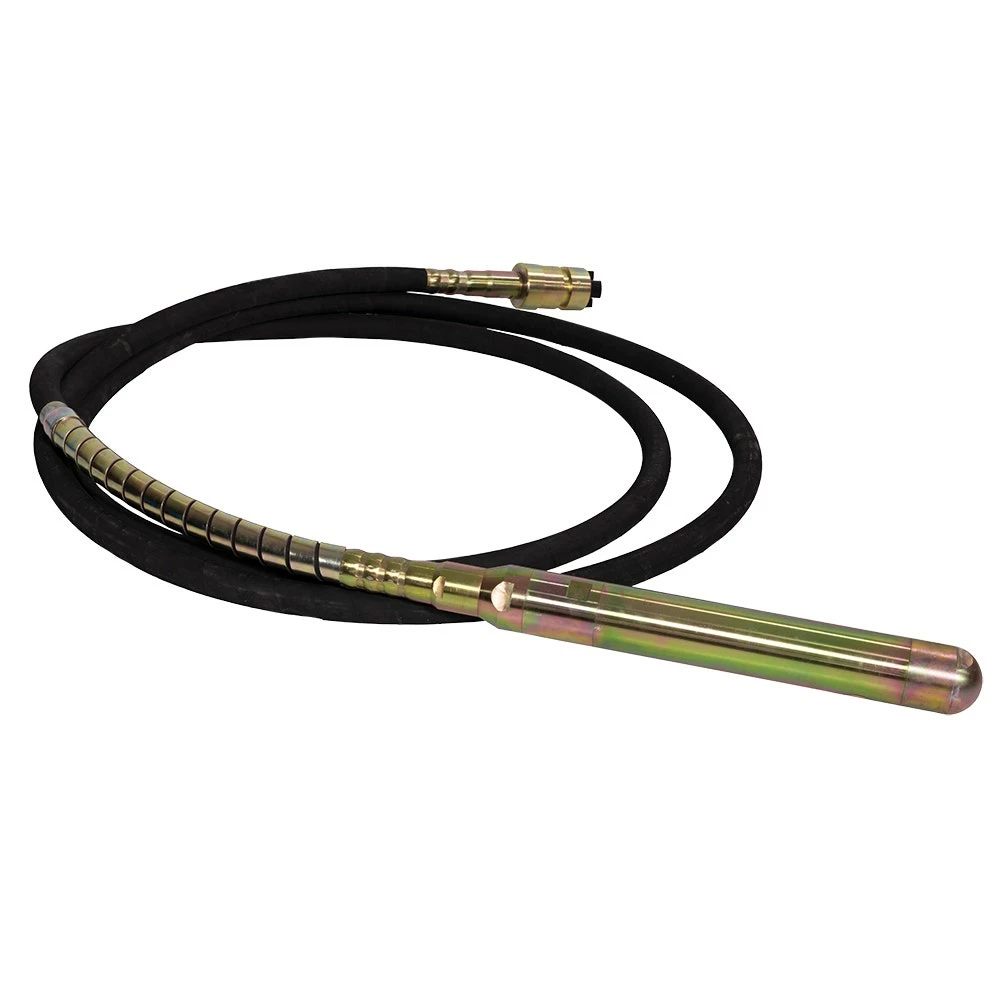

Heavy duty 6m Flex-shaft Concrete Vibrator for eliminating air bubbles in wet concrete slabs.

Compatible with SABDRU55HON Drive Unit and other Drive Unit brands.

Specifications:

• Concrete Vibrator
• Frequency: 12,000-14,000 vib/min
• Performance: 15m3/h
• Amplitude in Air: 2.2mm
• Vibrator Head Diam: 60mm
• Vibrator Head Length: 480mm
• Operating Weight (6m shaft): 23kg
• Flexshaft
• Drive: 3 – Tooth
• Flex Shaft Length: 6m
• Rubber Tube: 65N/m

Includes:

• 6m Flex Shaft Concrete Vibrator
• Instruction Manual
