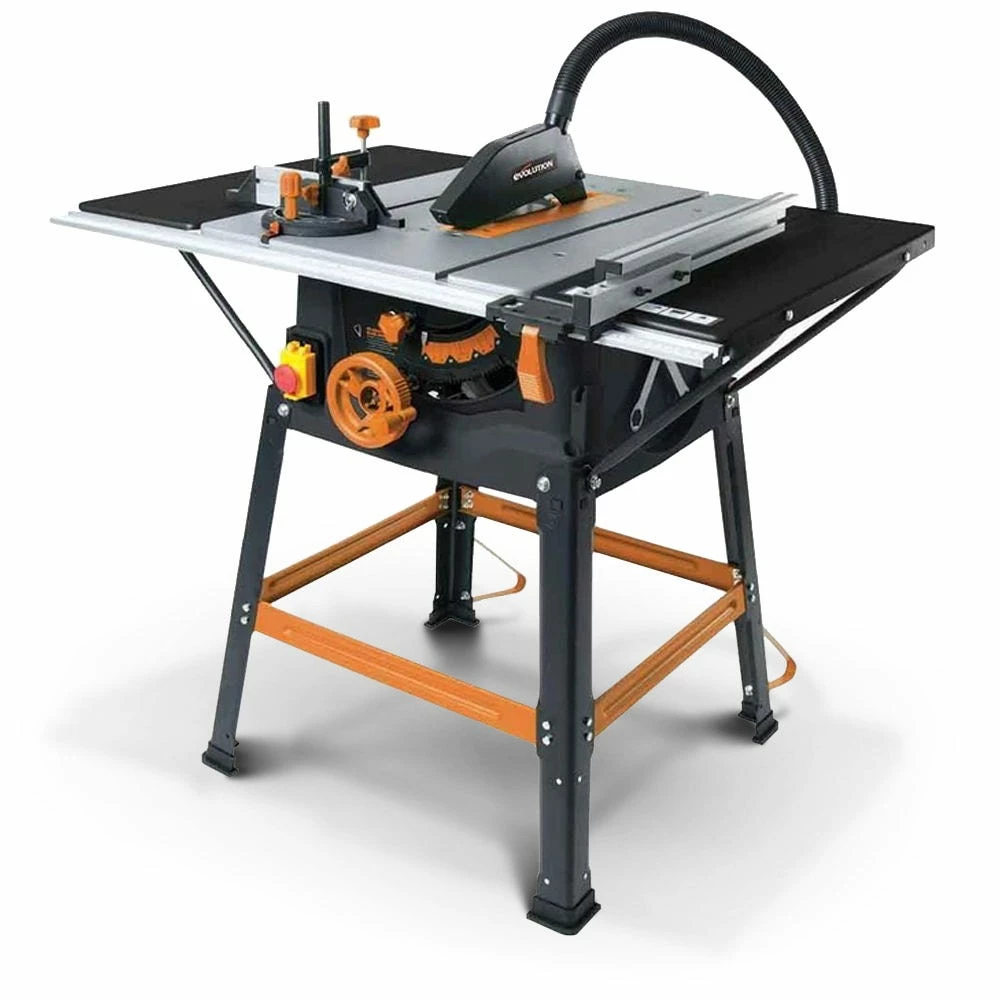

EVOLUTION 1500W 255mm Table Saw W. Stand R255MTS

A compact & robust table saw, designed to cut more than just wood. With the combination of power, optimised gearbox and multi-material cutting TCT blade, you have a saw that will cut almost anything accurately & reliably.

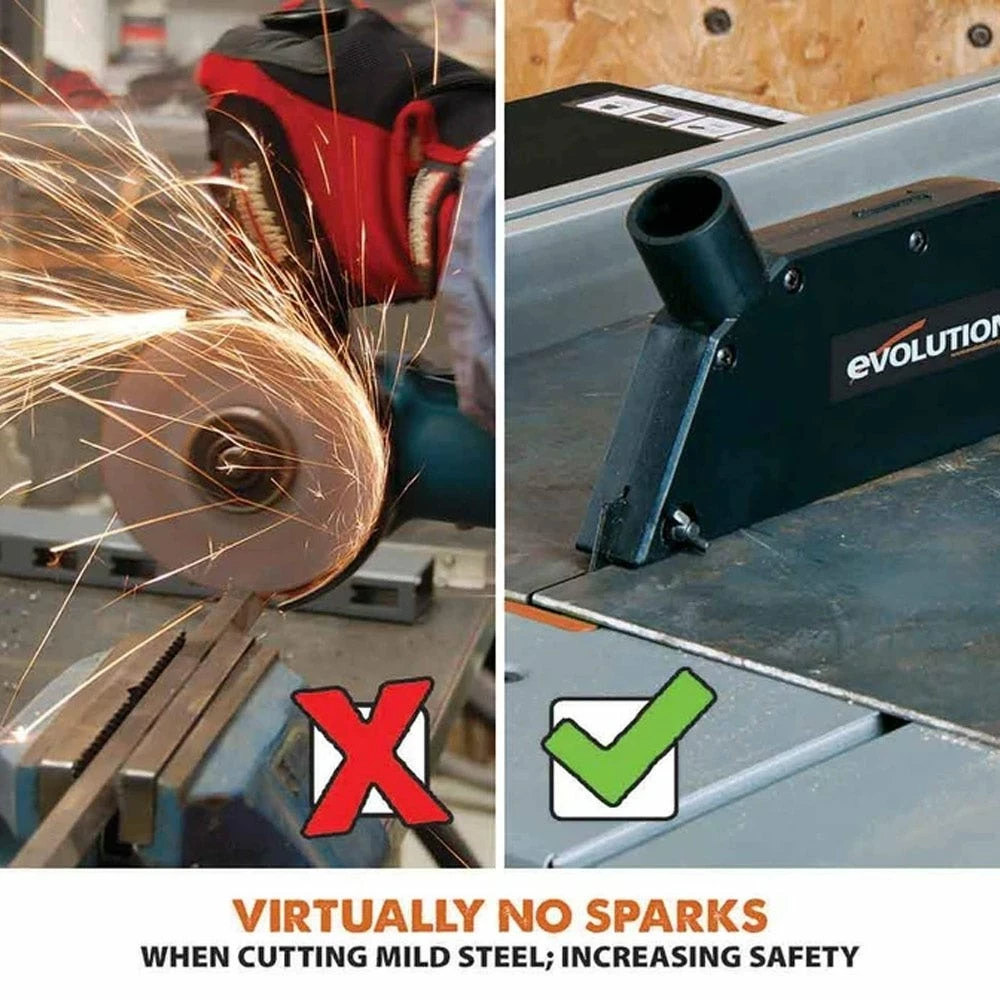

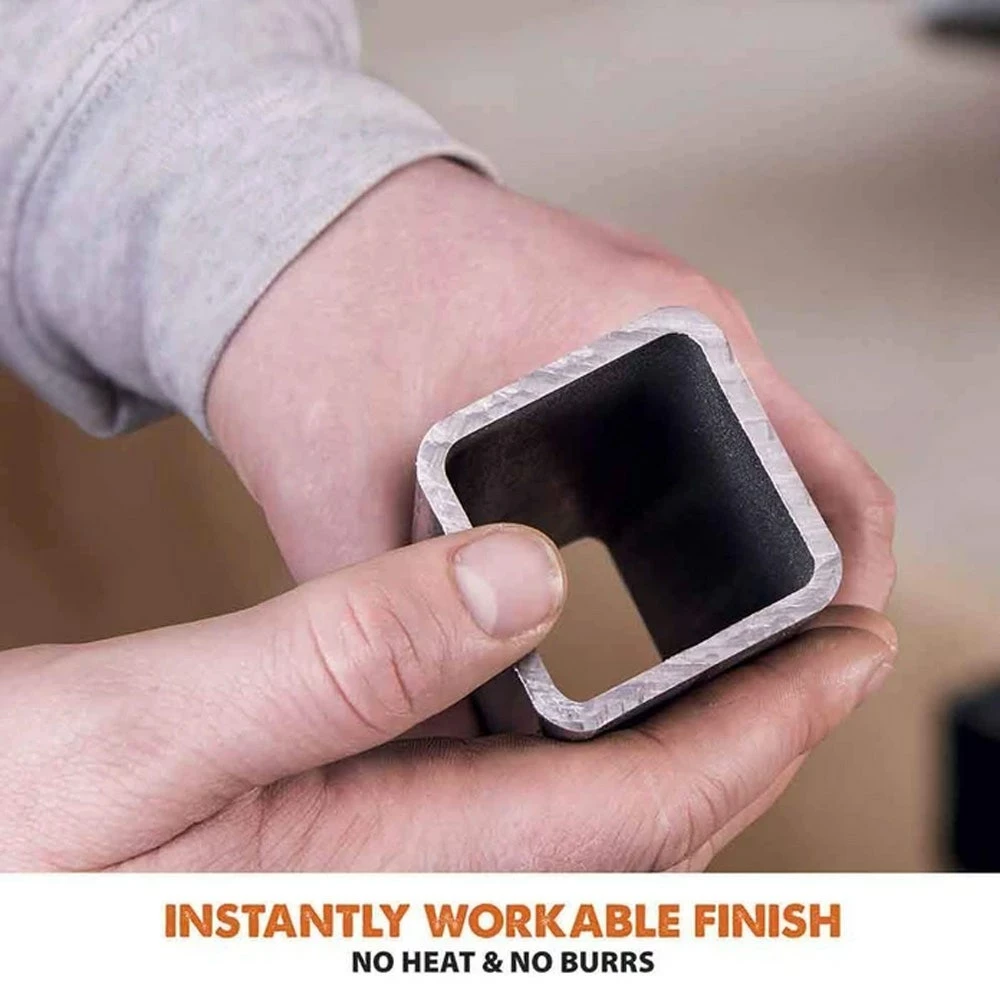

Utilising patented Evolution multipurpose cutting technology, the R255MTS multipurpose table saw will easily cut steel, aluminium, wood, and plastic using just one blade. The cut is fast, clean, and accurate, producing no burr and virtually no sparks when cutting steel. A compact & robust table saw that uses the combination of power, an optimised gearbox and a multi-material cutting TCT blade to cut almost anything accurately & reliably.

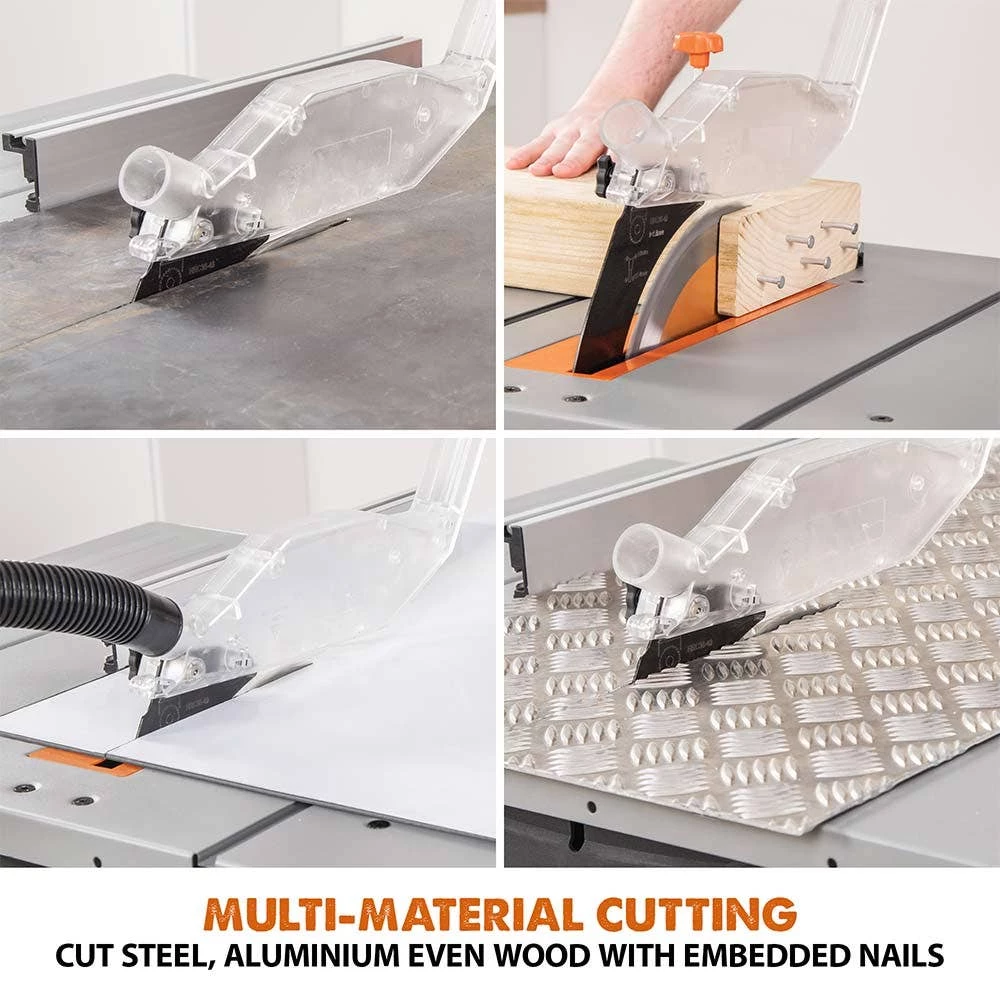

• Multi-Material cutting technology. One saw, one blade, cuts all.*

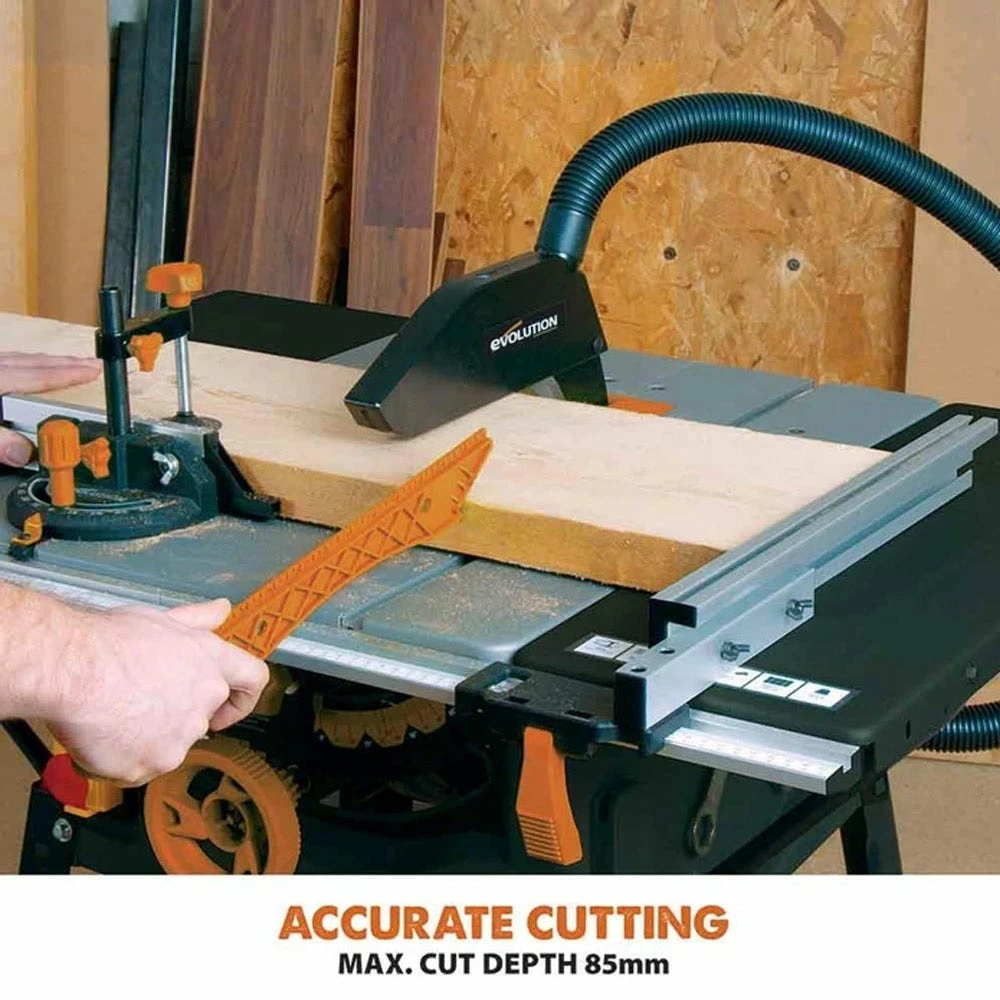

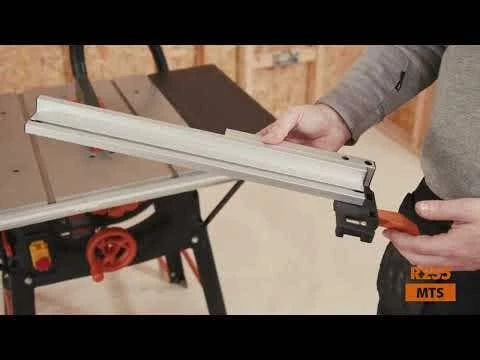

• Accurate rip cutting, assisted by an adjustable parallel fence with measuring rail guide.

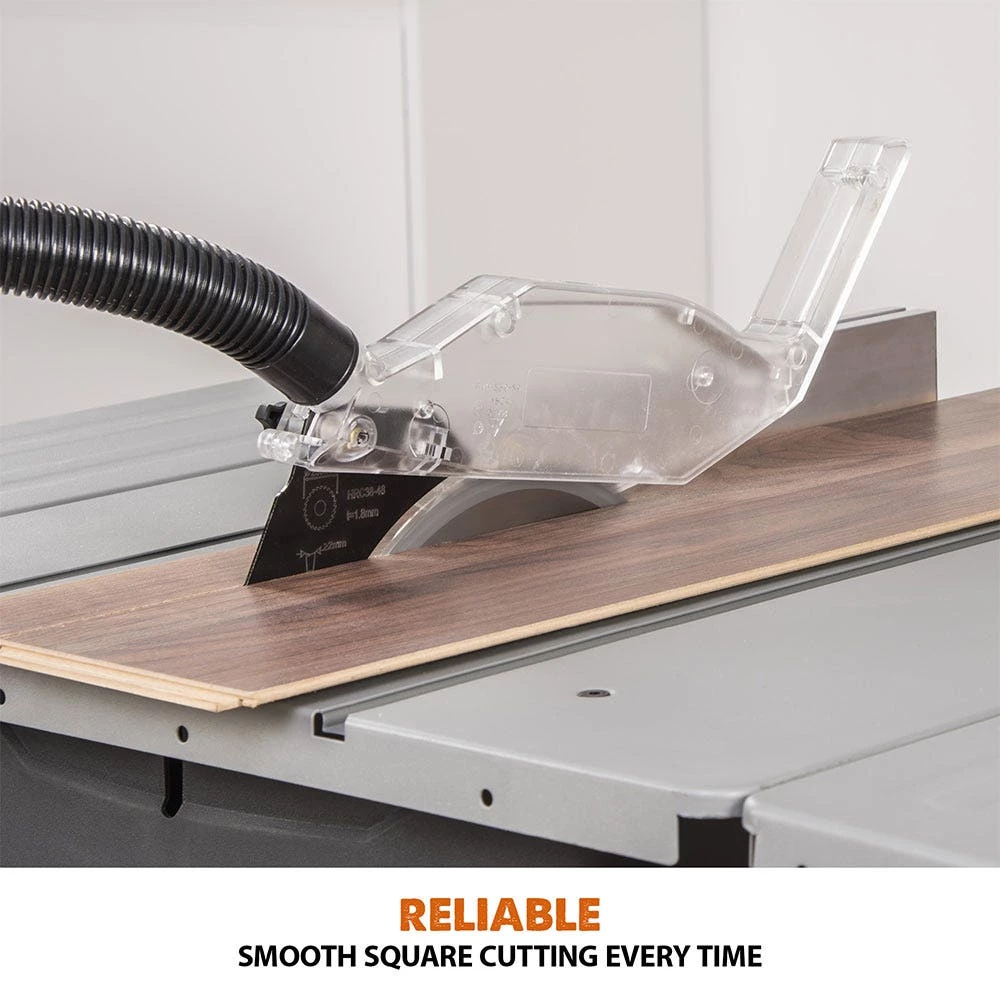

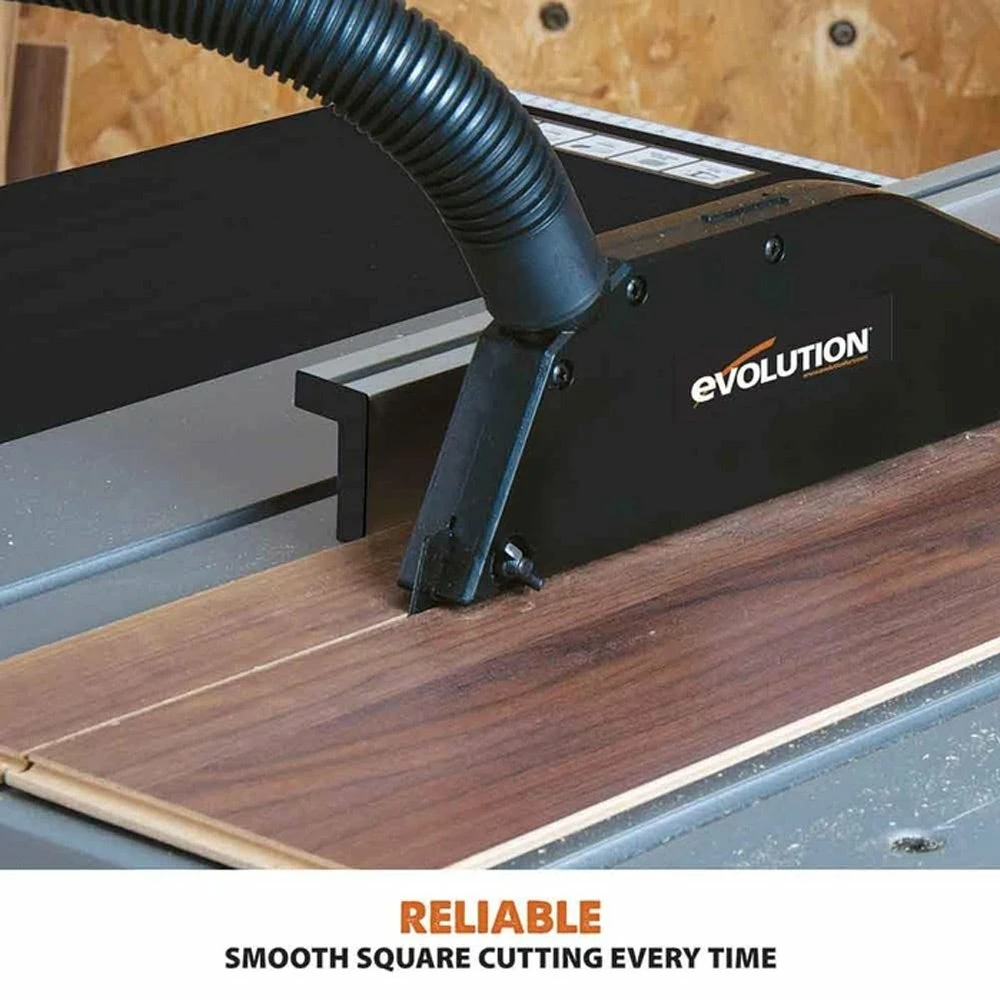

• Reliable smooth square cutting every time in a variety of materials.

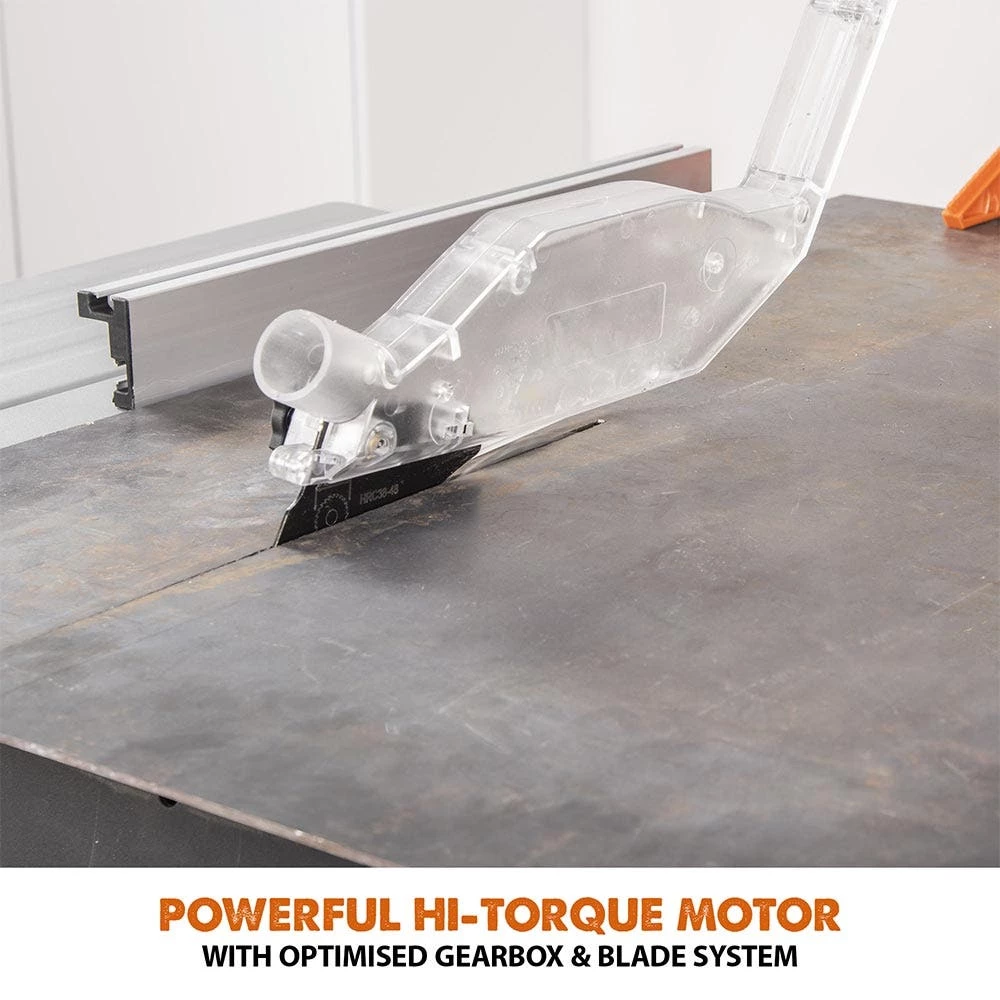

• Powerful 1500W hi-torque motor with optimized gearbox & blade system.

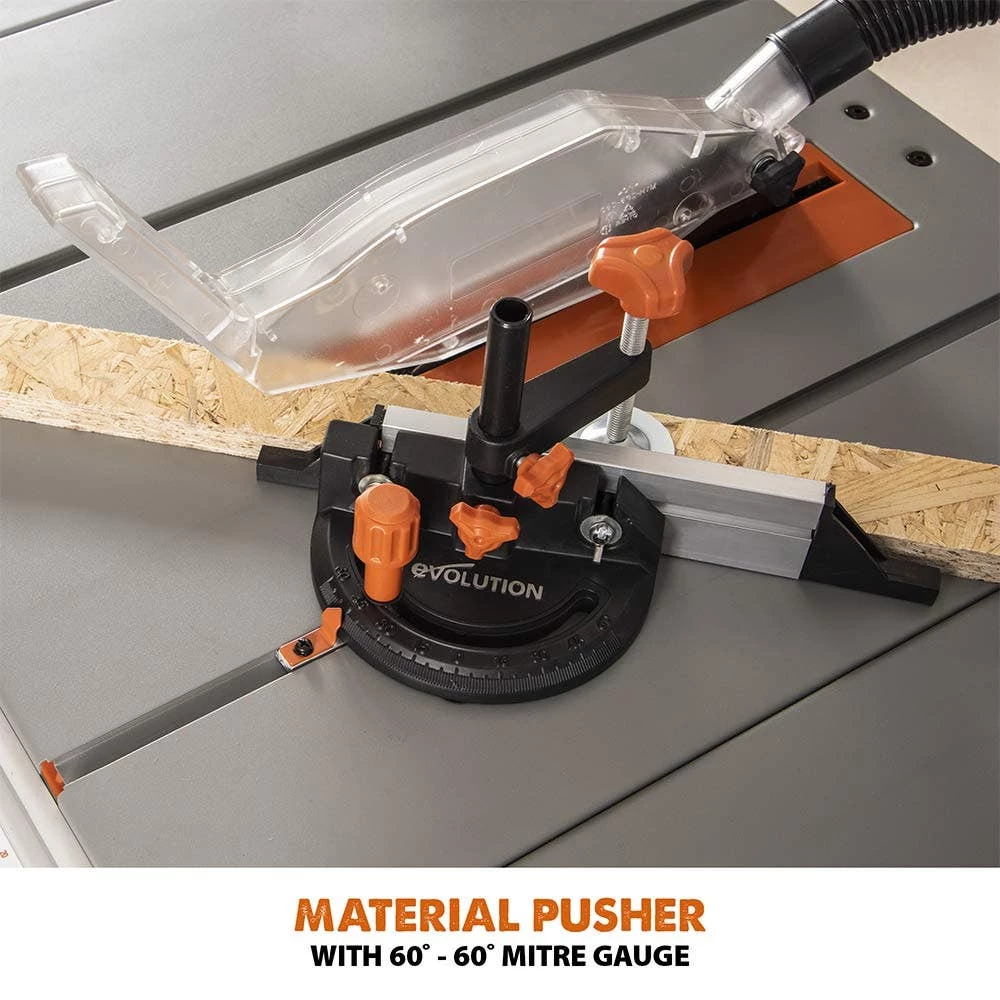

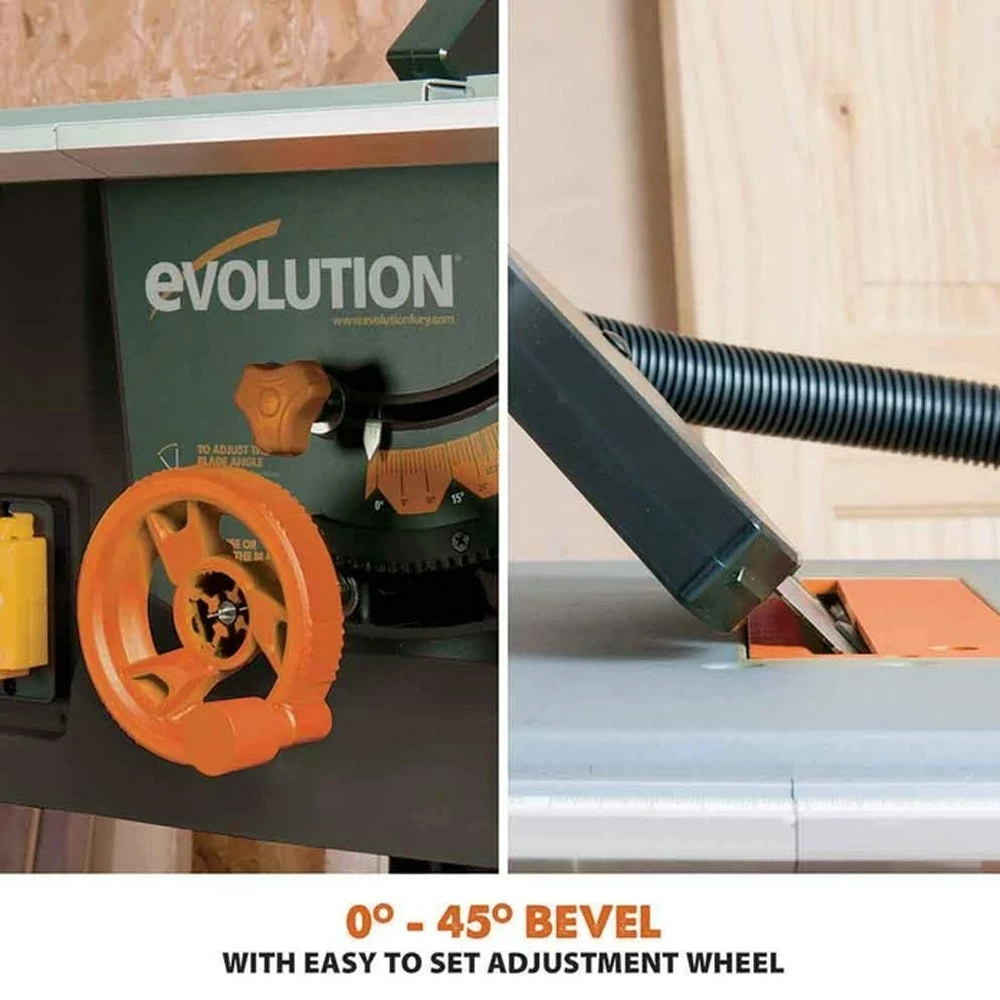

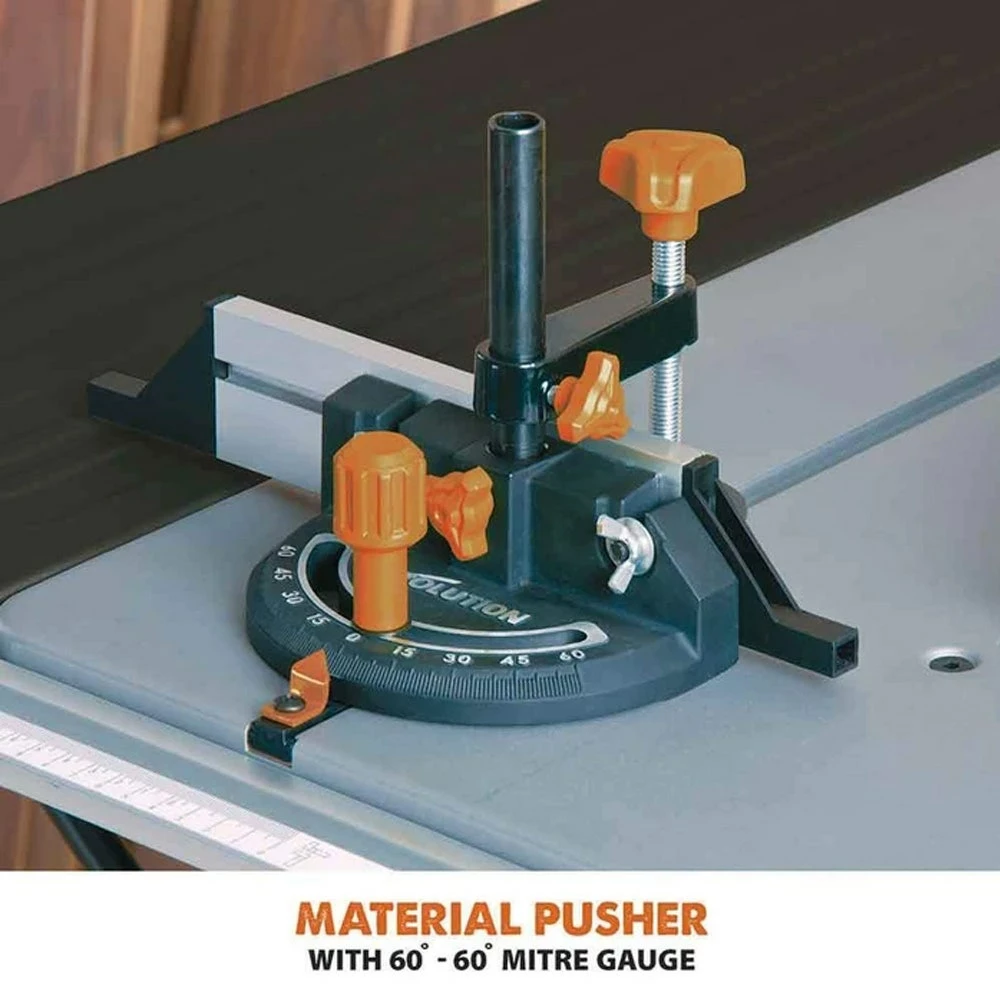

• 0° – 45° bevel tilt and 60˚ – 60˚ mitre fence covers all common, compound cutting angles.

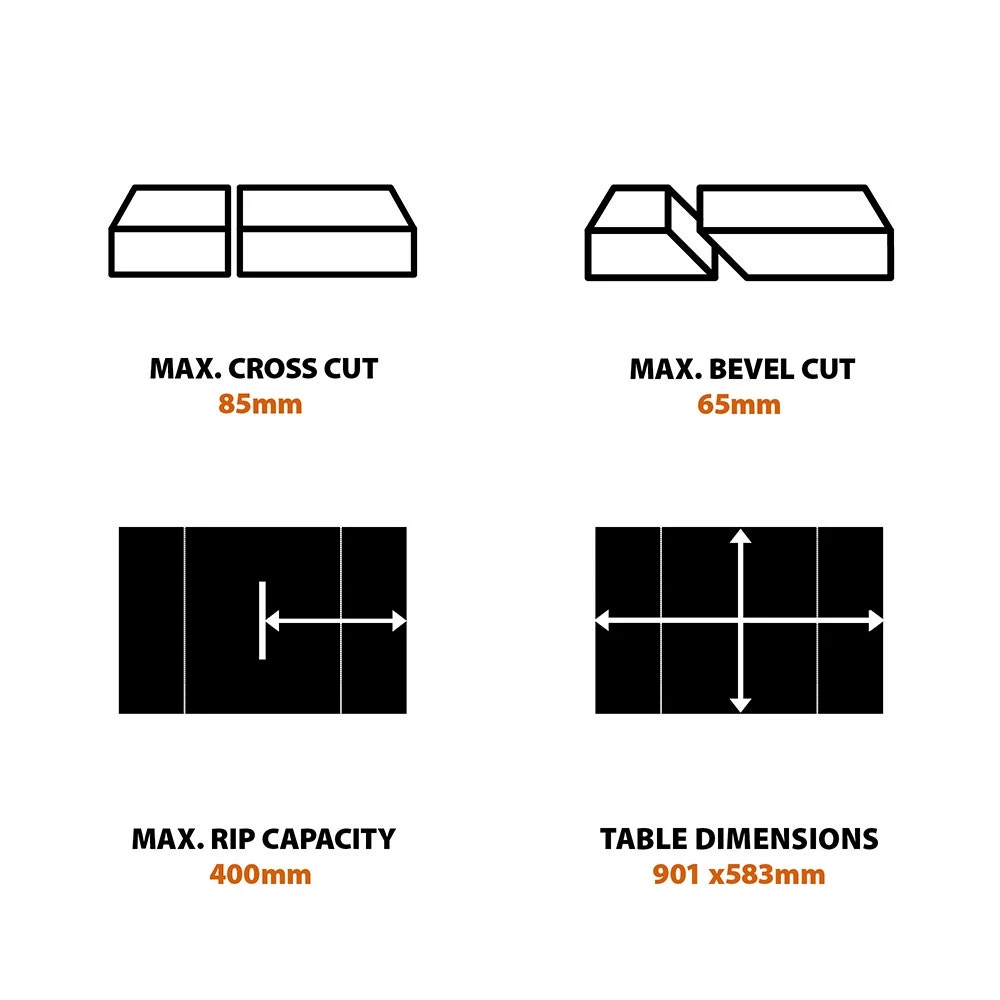

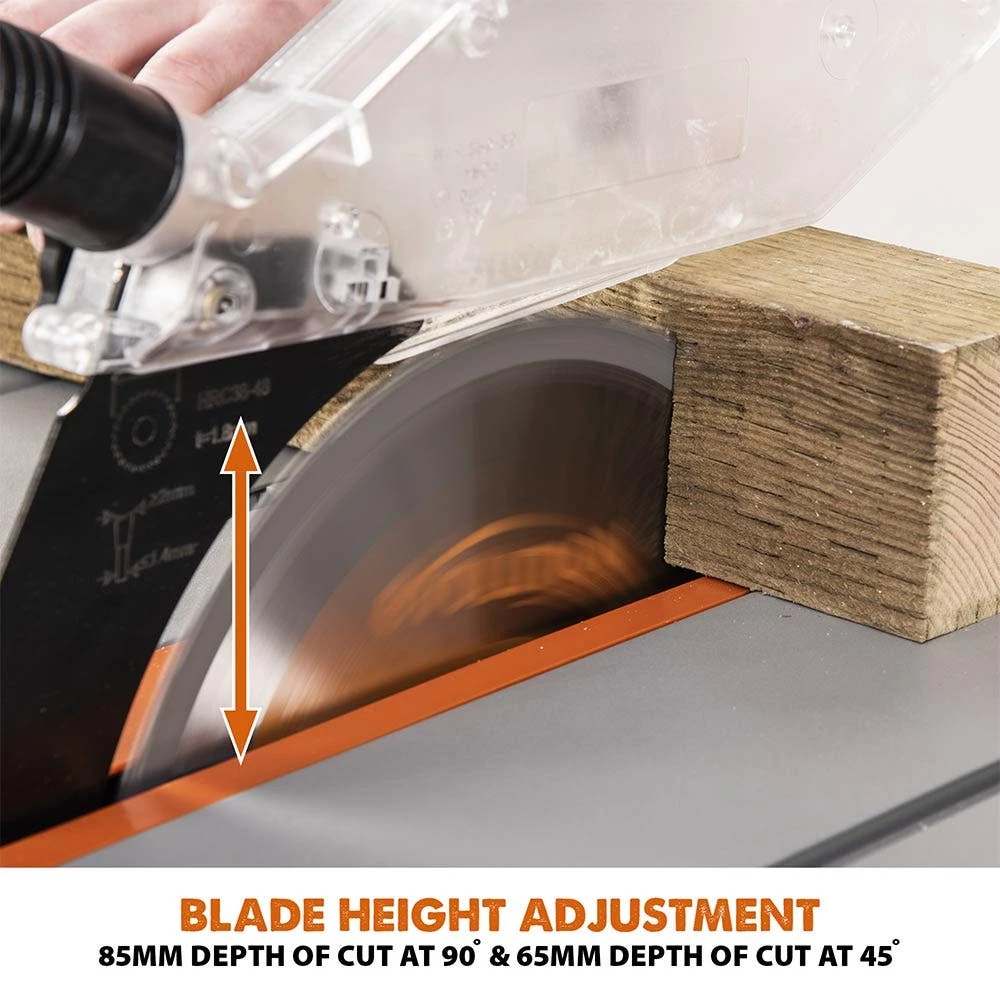

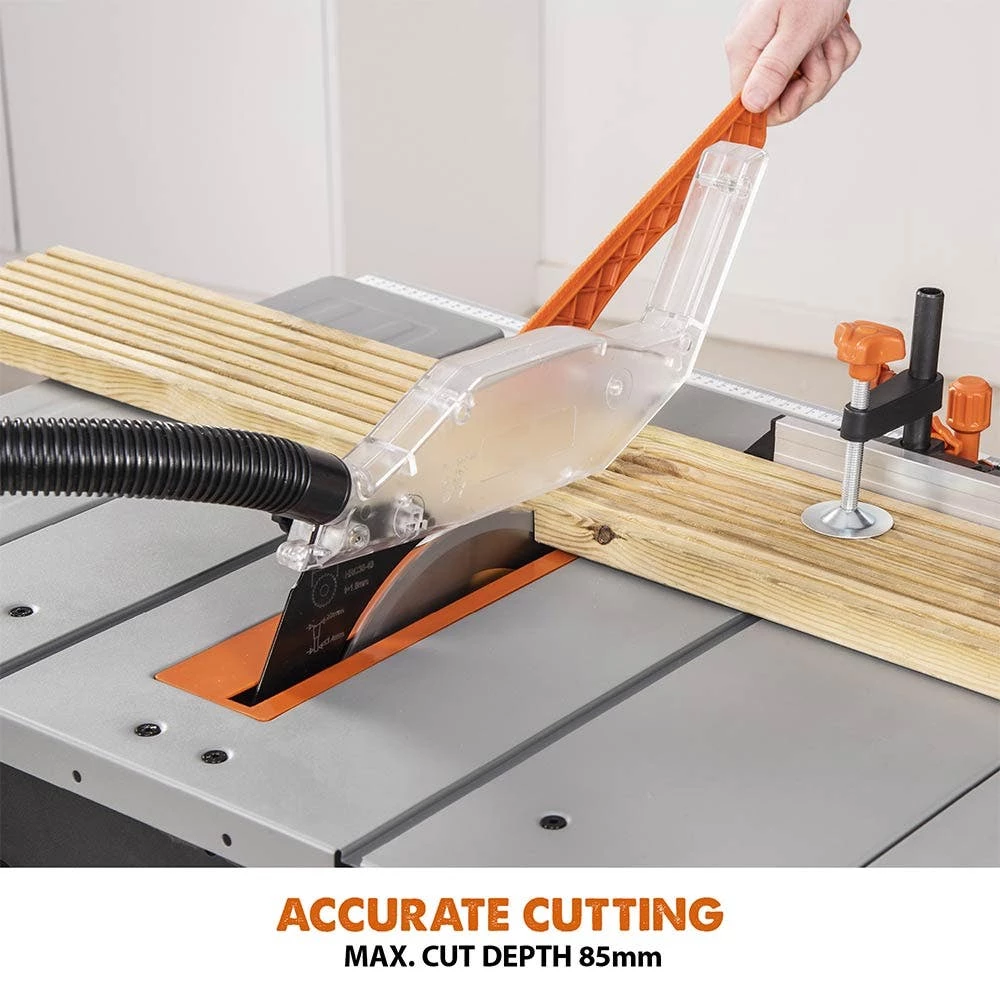

• 85mm depth of cut at 90˚ and 65mm depth of cut at 45˚.

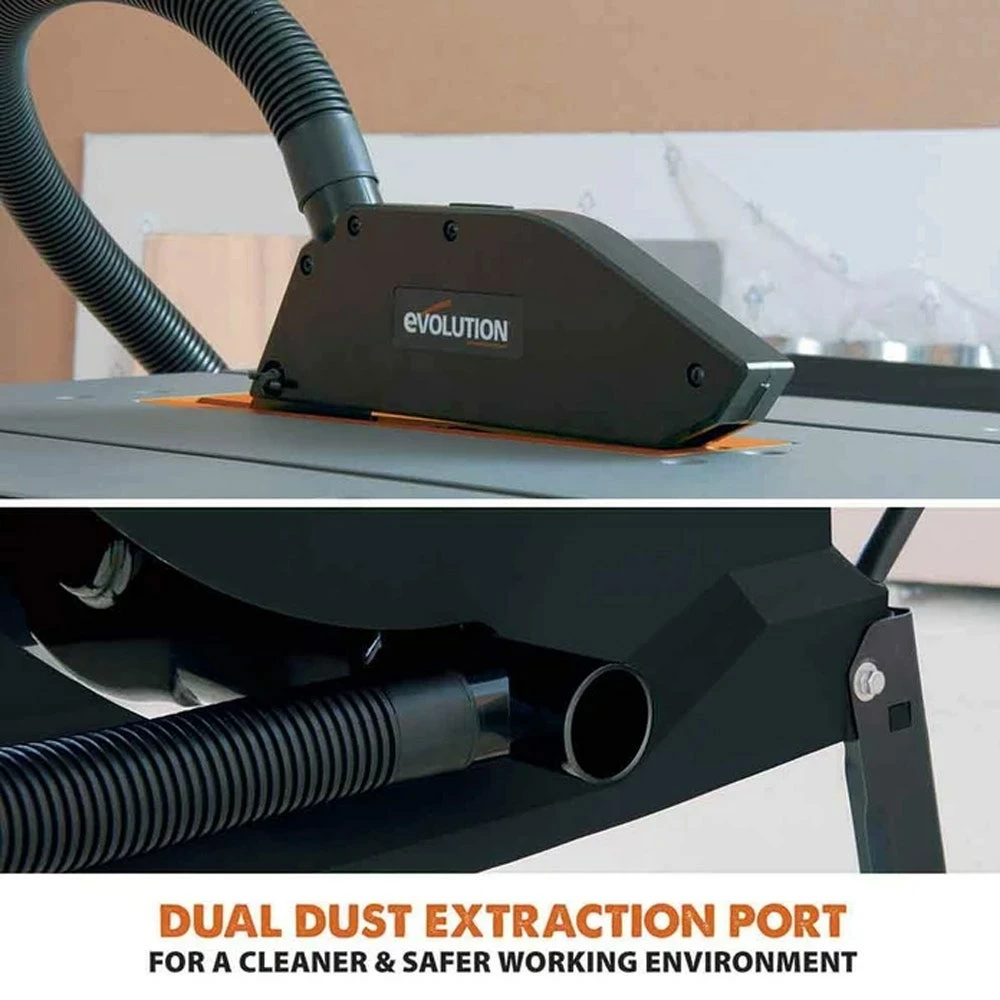

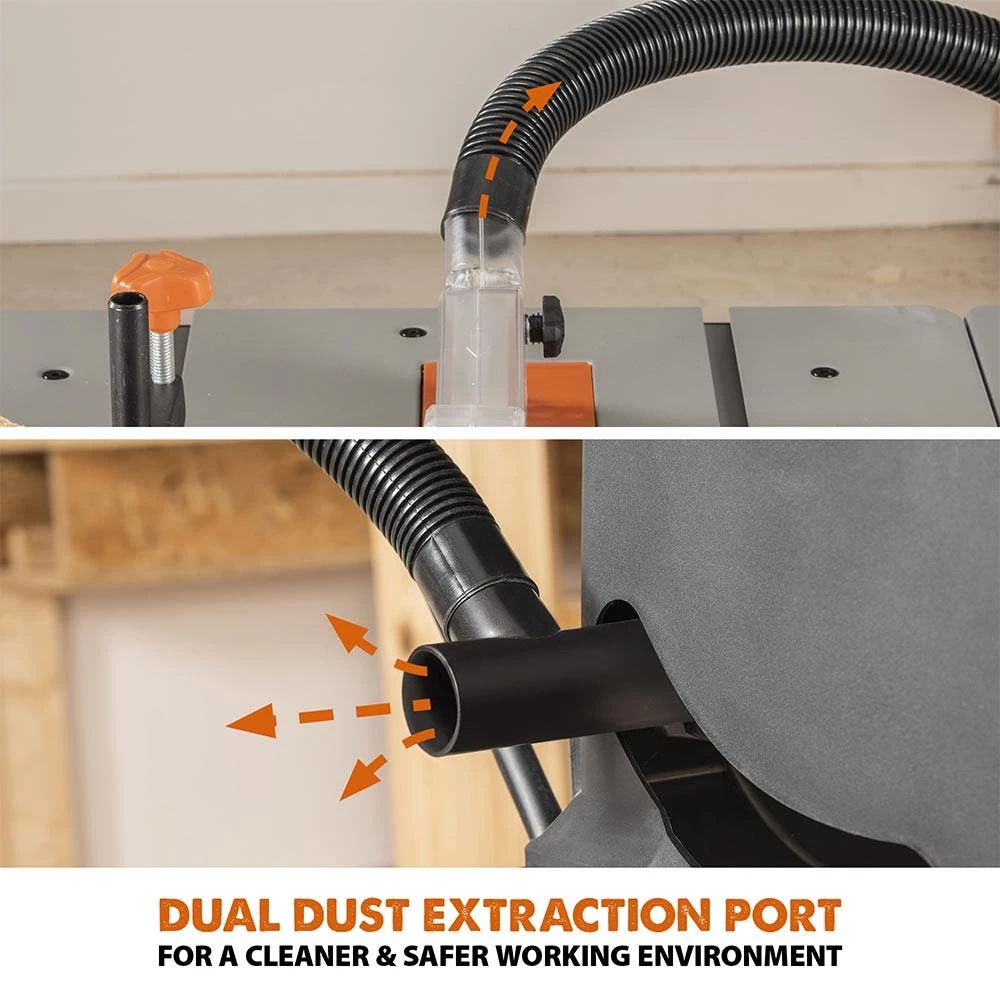

• Integrated Dust port compatible for vacuum dust extraction.

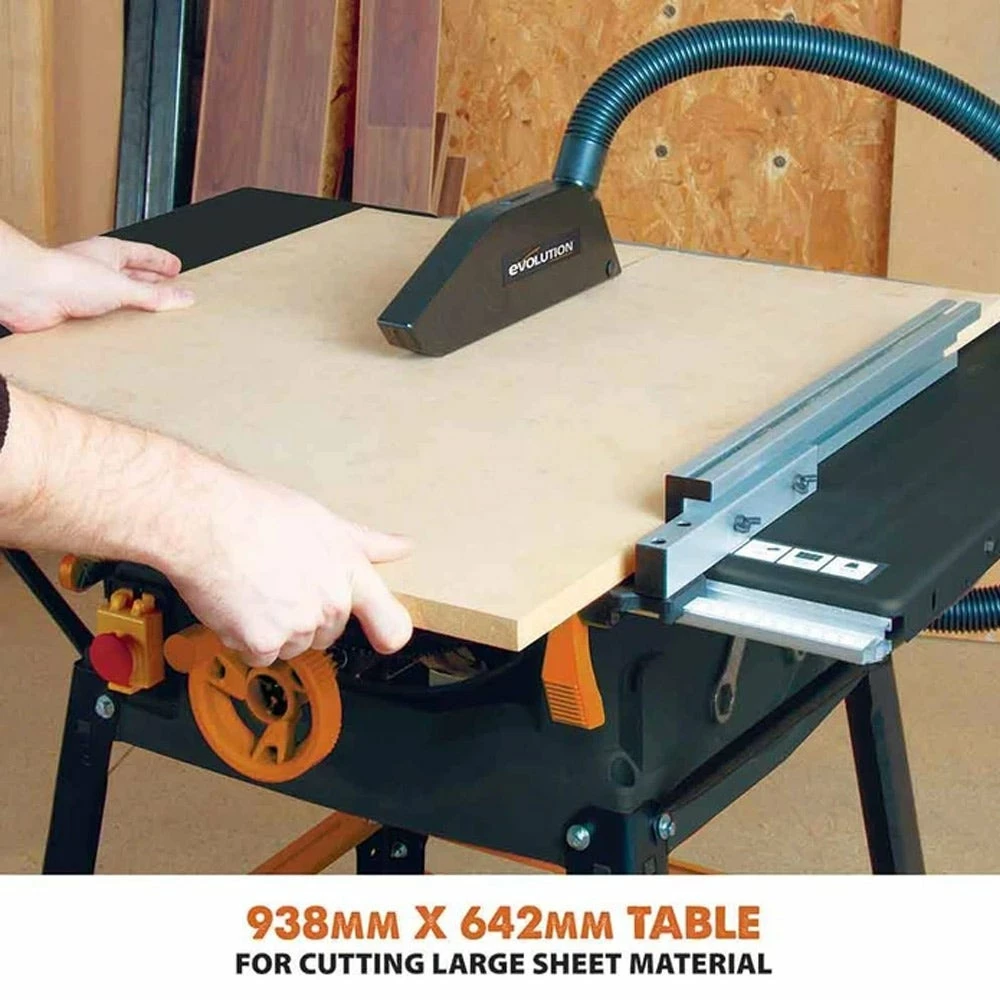

• Compact & lightweight design with a 938mm x 642mm table surface.

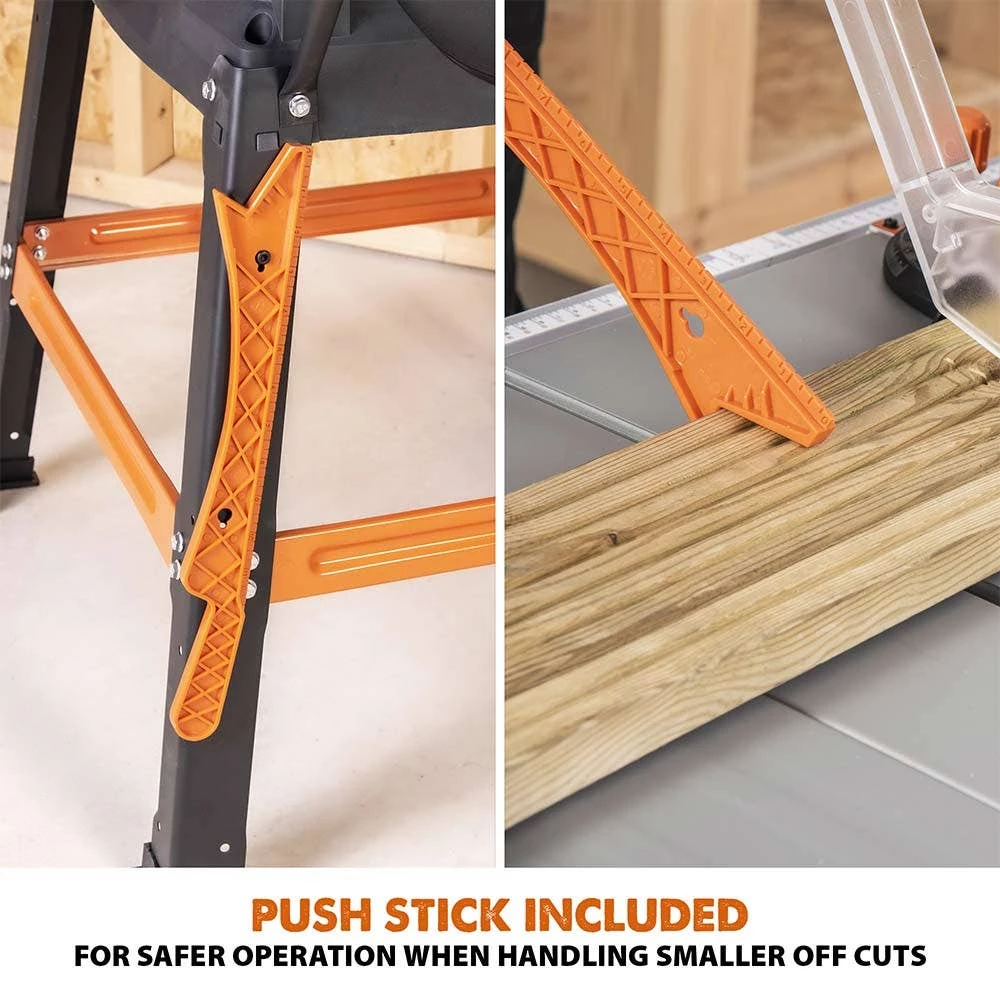

• Push Stick included for safer operation when handling smaller offcuts.
• 3 Year limited warranty.

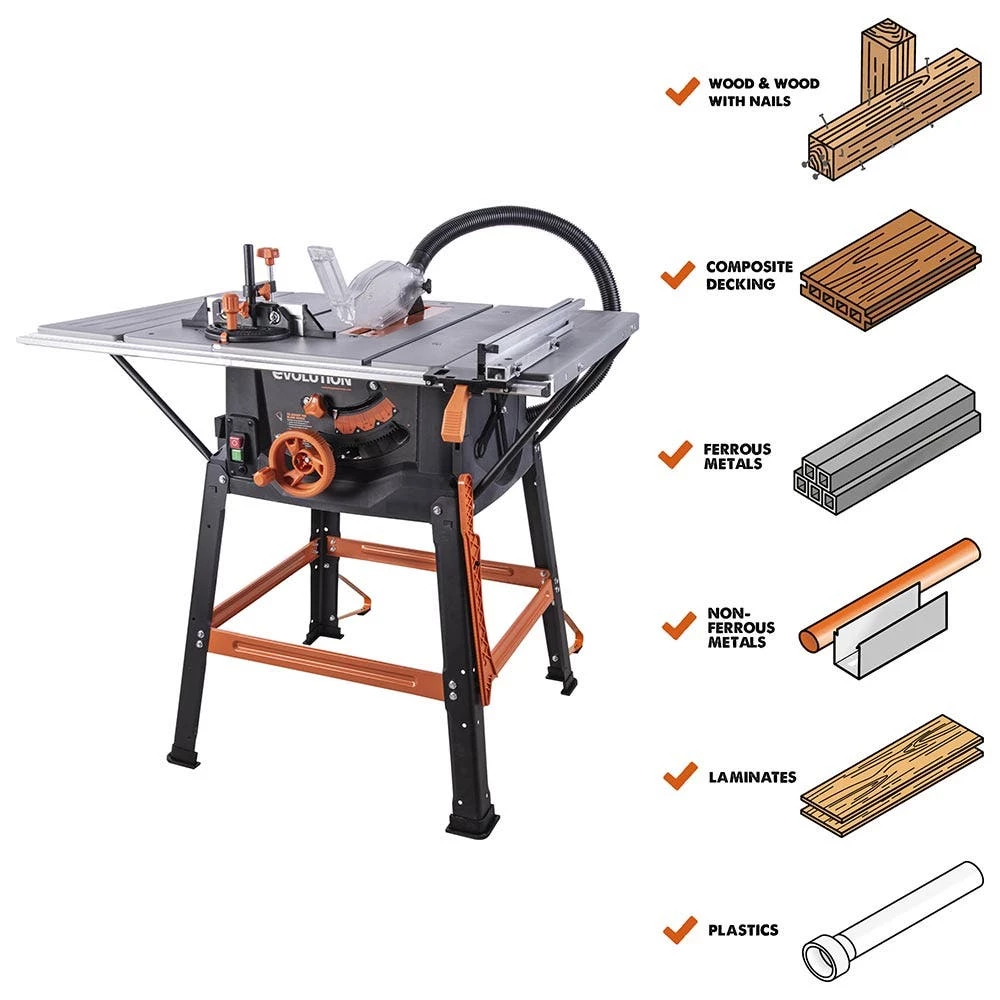

Applications

• Wood: Hardwood & tanalised decking, MDF laminates, mouldings, reclaimed wood with nails, scaffold boards & poles, stud-work.
• Ferrous Metal: Mild Steel, angled, box section, square tube, metal stud dry walling, rebar, RSJs, plate (1/4 inch), unistrut.
• Non-Ferrous Metal: Aluminium, armoured cables, cable tray, copper, floor edgings, roof flashings, stair nosings.
• Plastic: Electrical conduit, plastic pipes, plexiglas, rubber & reinforced hoses, (WPC) Wood Plastic Composites.
• Not Recommended: Hardened high carbon, coated and stainless steel. Note: Cutting galvanised steel may reduce blade life.

Specifications

• Motor (240V 50Hz): S1: 1300W, S6 40%: 1500W
• Speed No Load: 3250rpm
• Max. Bevel (Left): 45°
• Riving Knife Thickness: 1.8mm

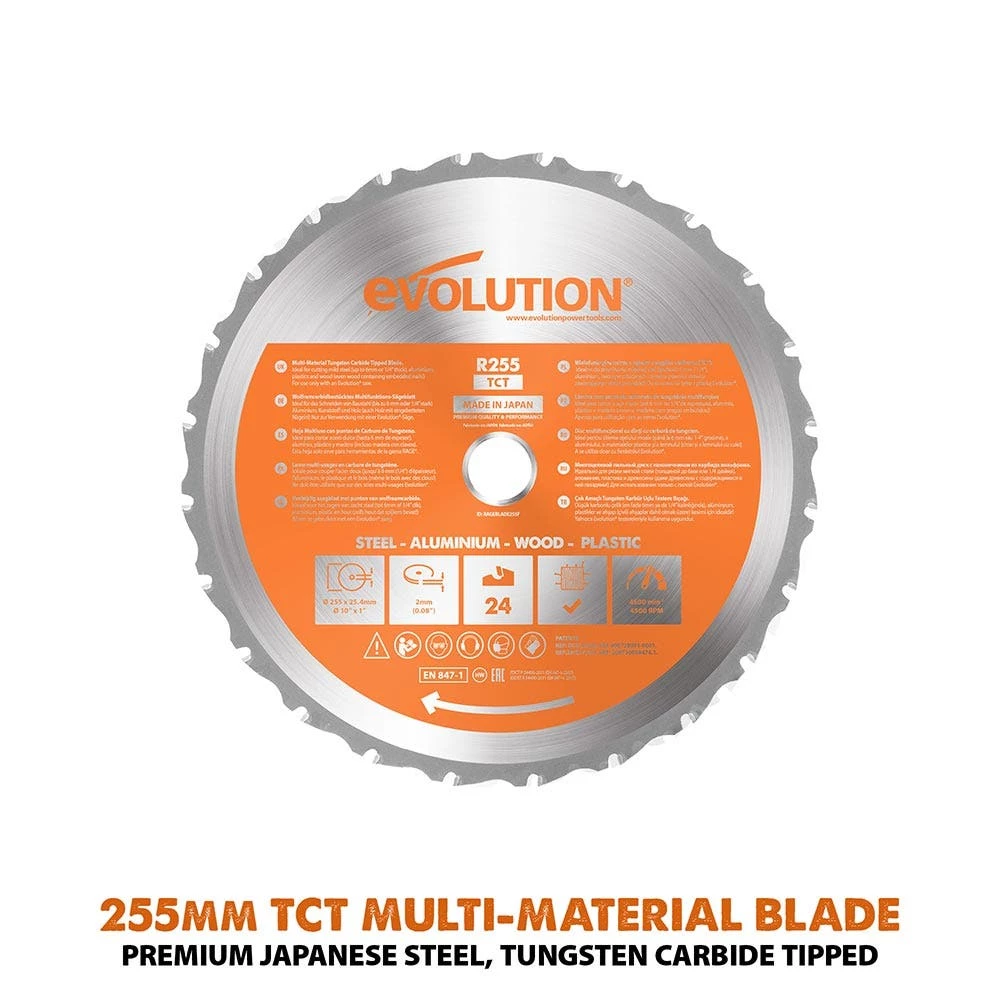

• Blade Dia.: 255mm
• No. of Teeth: 24
• Bore: 25.4mm
• Kerf: 2mm
• Max. Depth of Cut (0°): 85mm
• Max. Depth of Cut (45°): 65mm
• Mild Steel Plate (Max. Thickness): 3mm
• Mild Steel Box Section (Max. Wall Thickness): 3mm
• Rip Capacity – Right of the blade: 410mm
