BOSCH 1100W SDS-Max Rotary Hammer GBH540D

Bosch’s entry-level tool in the SDS max rotary hammer category

• Compact and lightweight for work in hard-to-reach places
• Durable due to robust metal components and optimised lubrication system
• Strong motor enables the delivery of 8.5 J of impact energy for fast drilling and high removal rate

The GBH 5-40 D Professional is the entry-level tool in Bosch’s SDS max corded rotary hammer category. Its lightweight and compact design makes it ideal for work in hard-to-reach places. The rotary hammer is also designed for durability, featuring robust metal components and an optimised lubrication system. Its strong motor enables the delivery of 8.5 J of impact energy for a fast drilling progress and high material removal rate.

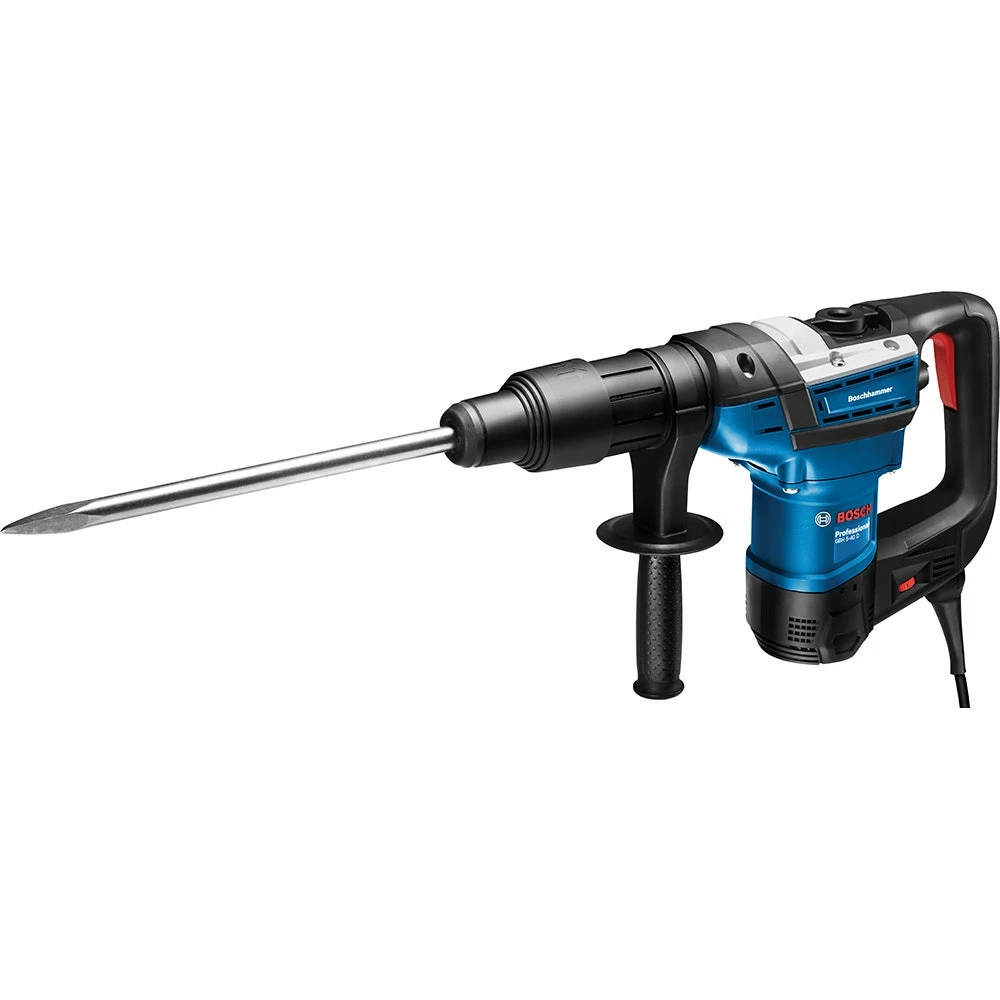

This tool is intended for drilling up to 40 mm in diameter as well as light chiselling work in concrete and stone. It is compatible with various dust attachments.

The GBH 5-40 D Professional also features a Rotation Control Clutch and Speed Selection.

Specifications:

• Impact energy: 8.5 J
• Rated speed: 170 – 340 rpm
• Tool holder: SDS max
• Drilling dia. concrete, hammer drill bits: 12 – 40 mm
• Drilling dia. concrete, breakthrough drill bits: 45 – 55 mm
• Drilling diameter in concrete with core cutters: 40 – 90 mm
• Max. drilling diameter masonry, core cutters: 90 mm
• Max. drilling diameter concrete: 40 mm
• Opt. appl. range concrete, hammer drill bits: 18 – 32 mm
• Noise/vibration information:
  • Noise level: The A-rated noise level of the power tool is typically as follows: Sound pressure level 93.5 dB(A); Sound power level 104.5 dB(A). Uncertainty K= 3 dB.
  • Vibration level: (drilling/chiselling) 14.0/11.5 m/s²
